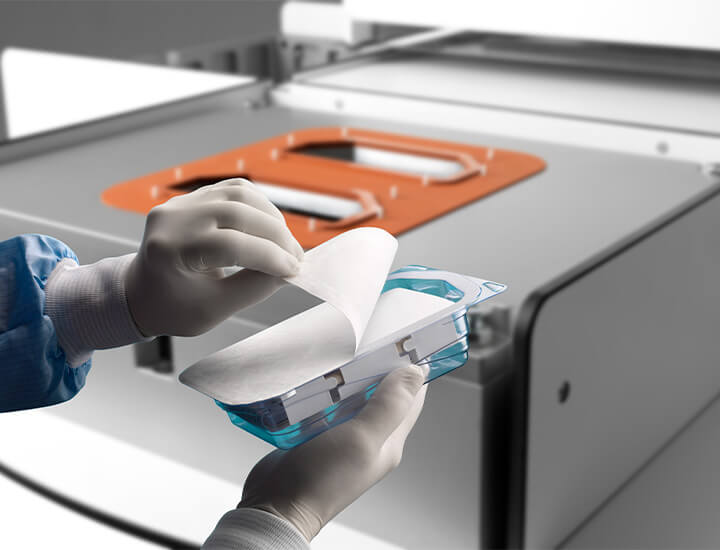

Blister packaging before it has been sealed in a Nelipak machine.
Medical Tray Sealer

AH-L Shuttle Sealer

Custom-built sealing machines for medical device and pharmaceutical thermoformed blisters and trays.


Nelipak® custom-built, mid-size single shuttle station medical tray and blister heat sealing machine. Specifically designed for trays with larger footprint.

Easy to operate with low maintenance requirements sealers designed for Class 7 cleanroom use. Two-hand push button activation of automated sealing cycle with inbuilt ejector of sealed trays for ease of removal.

PLC-control with HMI panel for ease of set up and storage of recipes.  Machine features 21 CFR 11 compliant logging of inputs providing an audit trail of data (optional extras).

The PLC program features precise Time, Temperature, and seal Pressure control.  Process Alarms provide increased confidence in your package seal quality.  User security password protection preventing accidental parameter changes or tampering by unauthorized users.


Optional Extras:
Calibration (Time, Pressure, Temperature)
eWon for remote login
CFR 21 Part II


  • Sealing area 560 x 200mm / 22.1 x 7.879in
  • Max height tray: 135mm / 5.31in.
  • Footprint 1210(l) x 920(w) x 1505(h)mm / 22.1(l) x 36.2(w) x 52.3(h)in.
  • PLC controlled with HDMI screen for ease of set up and operation.
  • 2 hand push button automatic drawer.
  • 4x PT100 thermo couplers.
  • Quick tool change Heating plate / Sealing die.
  • Electric regulator for air.
  • Clixon on heating plate.
  • RFID tagging of tools for machine recipes.
  • 1x USB port / 1x USB printing cable.
  • RJ45 socket.
  • Data log.
  • Max 20 machine recipes.
  • Automatic ejector (ejector tool required)
  • Temperature alarm (upper and lower limit, digital set up).
  • Seal time alarm (upper and lower limit, digital set up).
  • Seal pressure alarm (upper and lower limit, digital set up).
  • CE marked.
